VLX 100 Pivot Door

VLX 100 Pivot Door in Miami Lakes, FL | Sightline Windows & Doors Miami Lakes

The VLX 100 Pivot Door is a heavy-duty aluminum pivot door that rotates on a vertical center axis, featuring oversized glass panels that create a genuine architectural statement. In Miami Lakes, where modern estates in neighborhoods like Royal Oaks and newer builds near Main Street are increasingly favoring dramatic entryways over traditional hinged doors, this system has become the go-to for homeowners and architects who want daylight, scale, and presence without sacrificing security or weather performance. Sightline Windows & Doors Miami Lakes is an authorized ViewLux installation partner, which means our crews train directly on this hardware, our installs preserve the full manufacturer warranty, and our quotes reflect true Miami Lakes pricing rather than national estimates pulled from a catalog. If you’re planning a new build or replacing an undersized entry in Miami Lakes, call us at (786) 755-8730 to schedule a free on-site measurement.

Call (786) 755-8730

Product Overview - VLX 100 Pivot Door

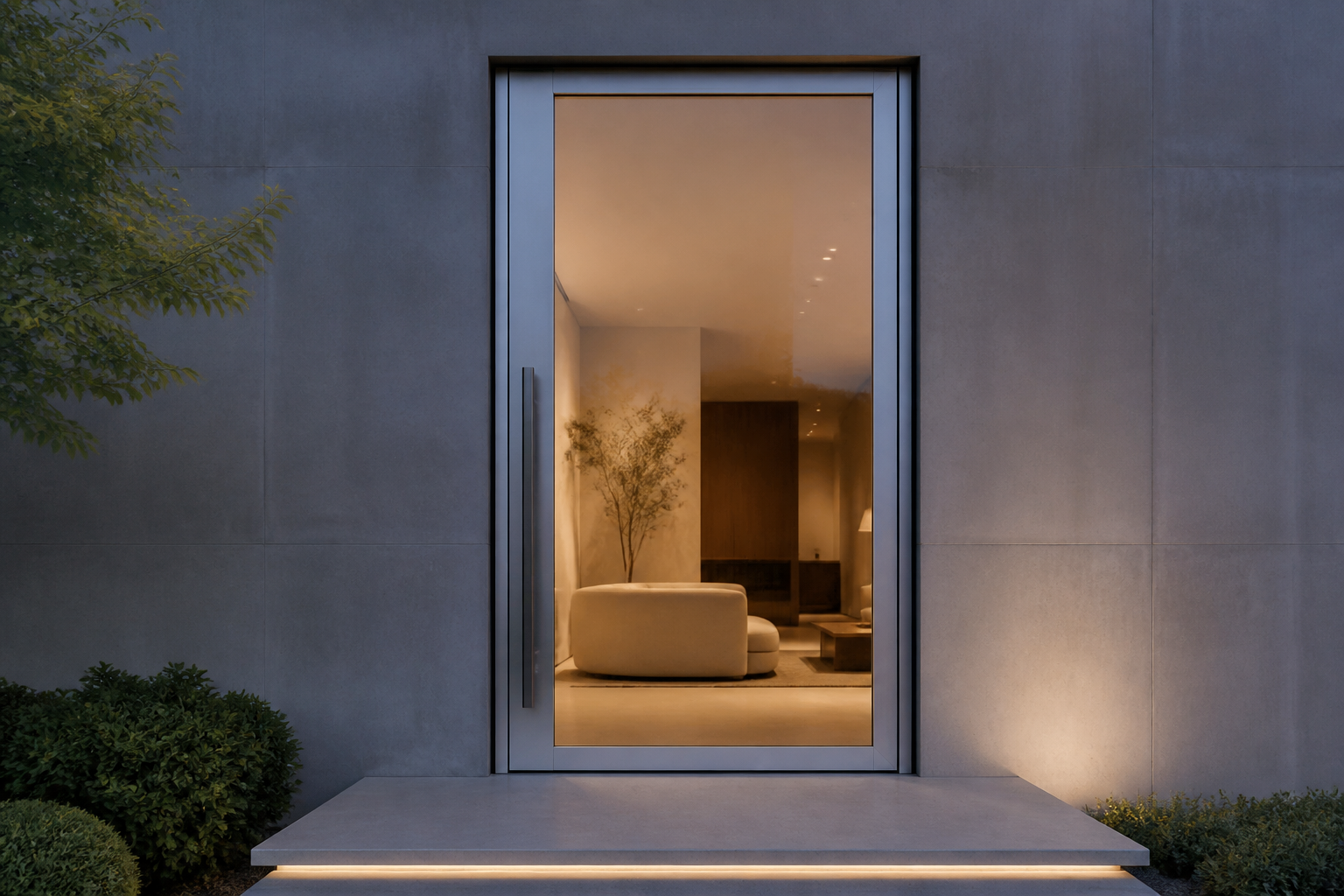

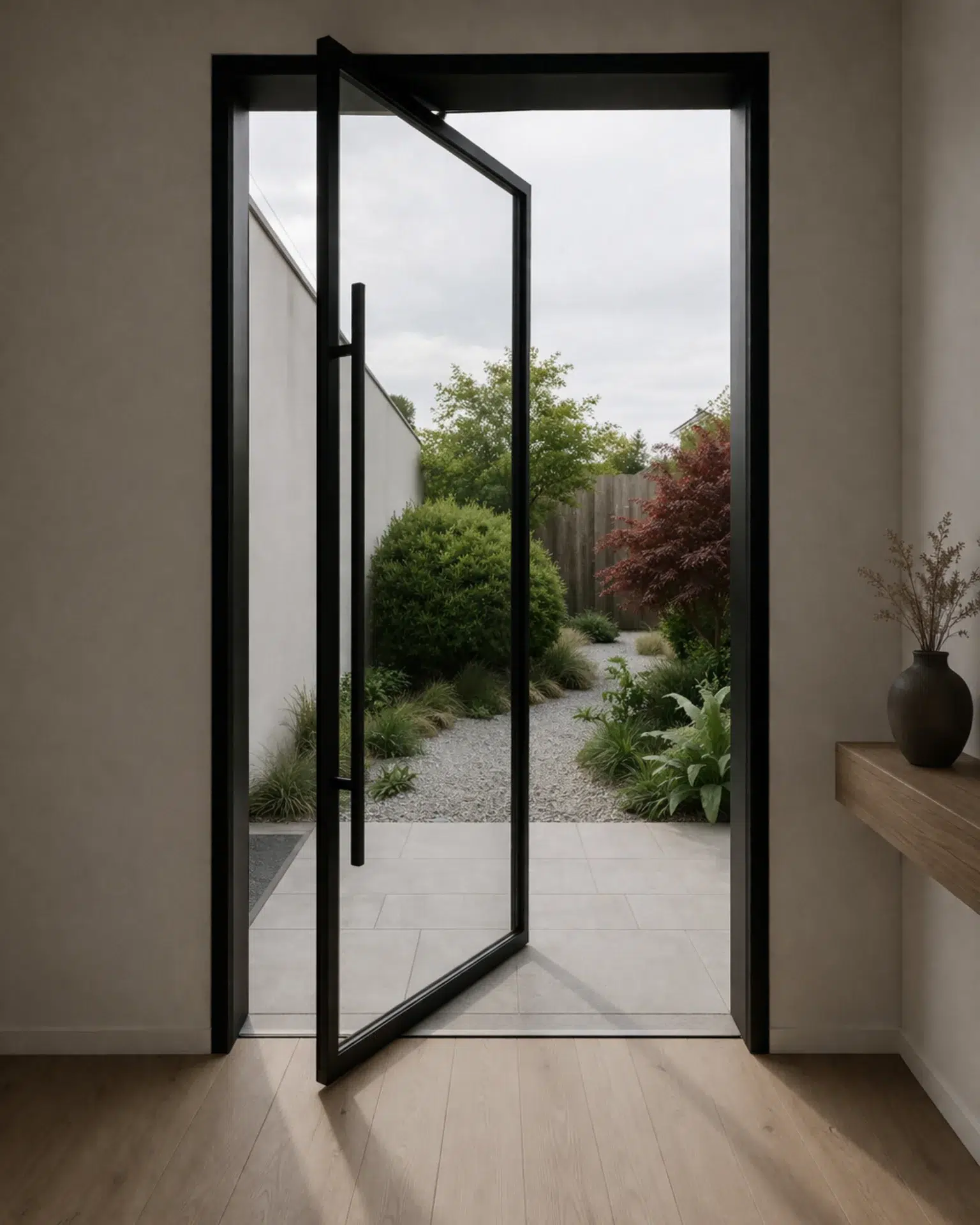

The VLX 100 Pivot Door rethinks how an entry door should move. Instead of hanging from side-mounted hinges, it rotates on a vertical center axis set into the floor and head jamb. That shift in engineering opens up possibilities: panels up to 60 inches wide and 120 inches tall, glass that dominates the visual field, and a swing arc that feels deliberate and substantial rather than conventional.

Buyers in Miami Lakes choose this series for three reasons. First, the aluminum construction handles our climate without the warping or swelling you’d see in wood after a humid summer. Second, the pivot mechanism distributes weight directly to the building structure, so even a 10-foot panel operates with controlled momentum. Third, it’s a genuine architectural statement. We’ve installed VLX 100 systems in homes along Ludlam Drive where the entry door functions as a lantern at night, and in Royal Oaks properties where the scale of the panel matches the volume of double-height foyers.

The heavy-duty aluminum frame is built around a 0.098-inch wall thickness and a 2.56-inch profile width. Those numbers matter because they translate to torsional rigidity. A pivot door this large generates real leverage forces; the VLX 100’s extrusion geometry resists racking and maintains seal integrity over years of daily use. The hardware itself, top and bottom pivot sets, is engineered for this specific weight class rather than adapted from standard hinge-door components.

Technical Specifications

All glass options are available in standard thicknesses appropriate to the panel size and wind-load requirements. Tempered and laminated selections meet Florida Building Code impact provisions where specified.

Before

After

Performance Features

Thermal Efficiency
The VLX 100 incorporates thermal break technology that separates interior and exterior aluminum surfaces with a low-conductivity barrier. NFRC-rated performance means the numbers are third-party verified, not claimed. In Miami Lakes, where summer cooling loads dominate energy bills, this matters for any door with this much glass area.

Acoustic Performance
Multi-chamber frame geometry and dual-durometer gaskets reduce sound transmission compared to standard aluminum storefront systems. For homes near the Palmetto Expressway or flight paths into Opa-locka, laminated glass upgrades add mass-damping that targets low-frequency noise.

Airtightness & Weather Seal
Compression seals at the jamb and head, plus a drop-bottom seal option, maintain positive closure against the frame. AAMA 812 low-expansion foam sealant at all perimeter joints prevents the air leaks that develop when installers skip this step or use incompatible products that shrink.

Waterproofing
The sill profile includes integrated drainage channels and a sloped surface that directs water outward. In Miami Lakes, where afternoon thunderstorms can deliver inches in an hour, this passive drainage works with the primary seals to keep water on the exterior side of the assembly.

Wind Resistance
The 0.098-inch wall thickness and reinforced corner construction achieve wind-load ratings appropriate for South Florida exposure. Impact-rated laminated glass options satisfy Miami-Dade County requirements for designated wind-borne debris regions.

Security & Hardware
Multi-point locking engages at the pivot jamb and a secondary point, with stainless steel components rated for coastal exposure. The pivot hardware itself is tamper-resistant from the exterior; the bottom pivot is set into a steel-reinforced pocket in the sill.

Color & Glass Options

Premium Black has become the default for contemporary builds in Miami Lakes, particularly in newer construction east of Main Street where charcoal stucco and white limestone pairings are common. Pure White reads cleaner on traditional Florida ranch homes and reflects heat effectively on south-facing entries. Anodized Silver suits mid-century modern renovations where original aluminum trim is being preserved elsewhere on the facade.

Bronze and Champagne are the compromise finishes. Bronze warms up modern elevations without the heaviness of black; we’ve seen it work well on Mediterranean-influenced homes near Miami Lakes Drive. Champagne is subtler, catching light differently through the day without demanding attention.

Teak Wood is a powder-coated aluminum finish that mimics grain pattern. It gives you the look of wood with zero maintenance, which in Miami Lakes humidity means no resealing, no checking, no rot at the sill.

Glass selection depends on privacy and solar control needs. Clear maximizes the architectural transparency that sells this door. Frosted and Obscure provide privacy for sidelight-adjacent entries or bathrooms where pivot doors are used internally. Low-E coatings target infrared heat gain without the green tint of older reflective glass. Tempered is standard for safety. Laminated adds the impact rating and acoustic damping mentioned above.

Installation by Sightline Windows & Doors Miami Lakes in Miami Lakes

We install every VLX 100 Pivot Door to AAMA 2400/2410 standards because the manufacturer warranty depends on it. ViewLux’s coverage is explicit: improper installation voids protection on the frame, the hardware, and the glass seal. That is not fine print. It is the reason we send our own crews rather than subcontracting to general labor pools.

Our process starts with a pre-install inspection of the rough opening. Pivot doors transfer load differently than hinged units; the floor must be flat within tolerance, and the head jamb must be level across the full span. We check for that before the panel arrives. On one recent job in Royal Oaks, we found a concrete pour that was 3/8 inch out of level. We ground it true rather than shimming and hiding the problem. That is the difference between an install that lasts and one that develops seal failure in year three.

Setting the frame means plumb, level, and square to 1/16 inch. The pivot hardware has no tolerance for twist; if the frame racks, the door binds or the seals gap. We secure with appropriate fasteners for the substrate, whether that’s concrete block, steel, or wood framing with Miami-Dade approved anchors.

Perimeter sealing uses AAMA 812 low-expansion foam sealant at all joints between frame and rough opening. This is not generic canned foam. The specified product expands at a controlled rate that won’t distort the frame during cure, and it maintains flexibility across our temperature range. Backer rod and sealant joints at the exterior face complete the weather barrier.

Final steps include hardware adjustment for smooth operation across the full swing arc, a water test with calibrated spray at the exterior, and cleanup that leaves the site ready for finish trades. We pull permits when required and coordinate inspections for impact-rated installations.

Miami Lakes-specific considerations include our exposure to salt-laden air, which accelerates corrosion on non-marine-grade hardware. We specify stainless steel fasteners and hardware components as standard, not upgrades. Our summer humidity also means condensation management matters; the thermal break and proper installation prevent interior surface temperatures from dropping below dew point.

Frequently Asked Questions - VLX 100 Pivot Door

Get a Quote - VLX 100 Pivot Door in Miami Lakes

Ready to see how a VLX 100 Pivot Door would work in your Miami Lakes home? Call (786) 755-8730 to schedule your free on-site measurement and written estimate. We’ll bring finish samples, review your opening conditions, and give you a line-item quote with no pressure to decide on the spot. Sightline Windows & Doors Miami Lakes has installed ViewLux systems across Miami Lakes from Royal Oaks to newer infill near Main Street. Let’s talk about your project.

Written by the team at Sightline Windows & Doors Miami Lakes, serving Miami Lakes since 2015.
