VLX 80 Fixed / Picture Window

VLX 80 Fixed / Picture Window in Miami Lakes, FL | Sightline Windows & Doors Miami Lakes

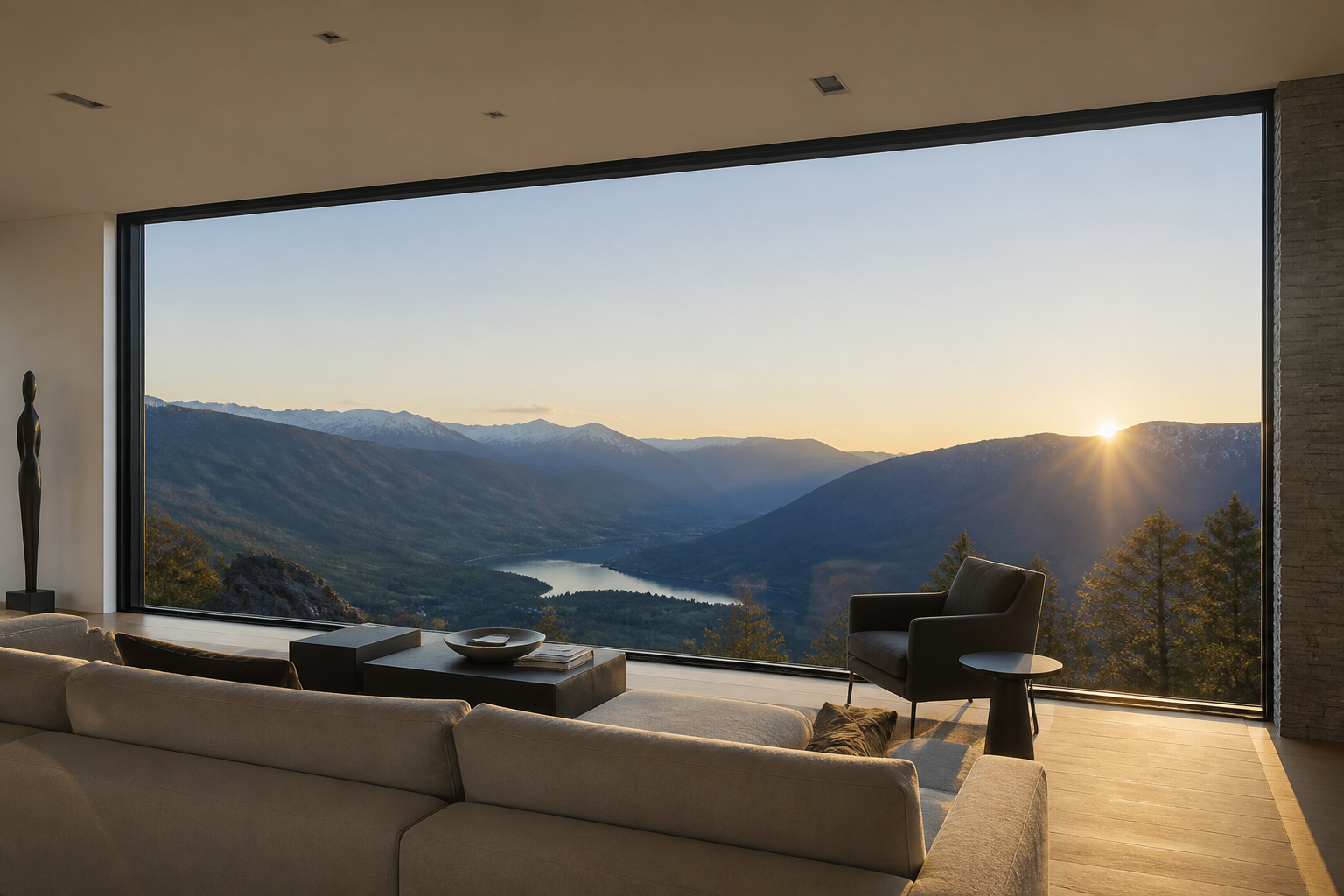

The VLX 80 Fixed / Picture Window is a maximally glazed fixed aluminum frame built for homeowners and architects who refuse to compromise on daylight or clean sightlines. Zero visible hardware means nothing interrupts your view, whether you’re framing the skyline from a Miami Lakes high-rise or capturing backyard greenery in a single-family home near Royal Oaks. At Sightline Windows & Doors Miami Lakes, we’re an authorized ViewLux installation partner, which means your project carries full manufacturer backing plus our own workmanship guarantee. We’ve installed this series across Miami Lakes, from modern new construction in the western developments to renovations in established neighborhoods east of the Palmetto. If you’re pricing a wall of glass or replacing outdated fixed units, call us at (786) 755-8730 for a free on-site measurement and written estimate.

Call (786) 755-8730

Product Overview - VLX 80 Fixed / Picture Window

The VLX 80 series was engineered around a simple idea: the window should disappear, and the view should take over. This is a fixed unit, meaning the sash does not open, which eliminates the operating hardware, locks, and weatherstripping channels that clutter traditional window profiles. What remains is an exceptionally thin aluminum frame surrounding a vast expanse of glass.

Architects specify this window for two reasons. First, the minimal profile width, at under two inches, creates the floor-to-ceiling aesthetic that buyers in Miami Lakes increasingly expect in new construction and whole-home renovations. Second, the aluminum construction holds up to South Florida’s punishing sun and salt air without warping, rotting, or swelling like wood or vinyl alternatives. We’ve installed VLX 80 units as standalone picture windows above soaking tubs, in stacked configurations along stairwells, and as the anchor of entire glass curtain walls in custom homes near Miami Lakes.

The engineering is straightforward but precise. A thermally broken aluminum frame separates interior and exterior surfaces to reduce heat transfer. The glazing pocket accepts multiple glass thicknesses and types. And because there’s no operating mechanism, the structural integrity of the frame itself carries the full wind load, which is why the maximum span reaches 120 inches wide in approved configurations.

Technical Specifications

Before

After

Performance Features

Thermal Efficiency

The thermal break insert in the aluminum frame creates a thermal barrier that cuts conductive heat transfer by half or more compared to non-thermally-broken systems. NFRC-rated performance data is available for every glass package we quote, so Miami Lakes homeowners can size their HVAC correctly and qualify for utility rebate programs where applicable.

Acoustic Performance

Fixed windows inherently outperform operable units for sound control because there are no gaps, operable sashes, or worn weatherstripping to leak noise. Laminated glass upgrades add mass and damping for homes near the Palmetto Expressway, Miami Lakes Drive, or flight paths with aircraft noise.

Airtightness & Weather Seal

Every VLX 80 we install receives AAMA 812 low-expansion foam sealant at all perimeter joints between frame and rough opening. This maintains the airtight envelope that modern energy codes demand and prevents the drafts that older aluminum windows in Miami Lakes are notorious for.

Waterproofing

The frame system includes internal drainage channels and sloped sill profiles that move water to the exterior. Combined with proper flashing and our AAMA 2400/2410-compliant installation sequence, this is a window built for rain events that dump inches in hours, which Miami Lakes sees every summer.

Wind Resistance

With no operable sash to rattle or leak under pressure, the fixed frame carries wind loads directly through the jambs and into the surrounding structure. Impact-rated laminated glass options meet the strictest Miami-Dade wind-borne debris requirements for homes in HVHZ zones.

Security & Hardware

Zero visible hardware means zero exposed lock mechanisms to fail or corrode. The fixed design itself is a security feature: there’s no sash to pry open. For projects requiring operable ventilation elsewhere, we typically pair VLX 80 fixed units with matching operable windows from the same ViewLux family.

Color & Glass Options

Six finishes and seven glass types let us match almost any Miami Lakes architectural style.

Premium Black dominates contemporary and minimalist homes, especially when paired with black-tinted glass for a monolithic look. Pure White suits coastal traditional and Mediterranean-influenced exteriors common in eastern Miami Lakes. Anodized Silver reads as industrial and modern; we’ve used it on several downtown-adjacent townhome projects. Bronze warms up stucco and stone facades without the maintenance of actual copper. Champagne is the understated choice for transitional homes that blend modern lines with softer color palettes. Teak Wood gives you the warmth of wood grain on an aluminum substrate that won’t rot in humidity.

Glass selection matters for function, not just aesthetics. Clear glass maximizes visible light transmission. Low-E coatings reject solar heat gain, critical for west-facing walls in Miami Lakes afternoons. Tempered glass is code-required for large lites and areas near doors or wet spaces. Laminated glass provides impact resistance, sound control, and UV blocking. Gray Tint and Black Tint reduce glare and add privacy without blinds. Frosted glass obscures sightlines for bathrooms and secondary bedrooms.

Installation by Sightline Windows & Doors Miami Lakes in Miami Lakes

We don’t hand off ViewLux products to subcontractors who might cut corners. Every VLX 80 Fixed / Picture Window we sell is installed by our own crews, trained specifically on this frame system and its tolerances.

Our process starts with a pre-installation inspection of the rough opening. We check for square, level, and plumb within 1/8 inch across the full span. On a 120-inch unit, even a small deviation compounds into visible frame distortion or glass stress. We shim and anchor the frame to manufacturer specifications, never relying on fasteners alone to pull a twisted opening into compliance.

Perimeter sealing follows AAMA 812 standards with low-expansion foam sealant that fills gaps without bowing the frame as it cures. We cap with compatible backer rod and sealant at the exterior face. The full installation meets AAMA 2400/2410, the benchmark for fenestration installation in commercial and high-end residential work.

Before we leave, we run a water test on the exterior and inspect interior sightlines for level sill and consistent reveals. We clean the glass and protect finished surfaces. And we document the installation for your warranty file.

Here’s what Miami Lakes homeowners need to understand: improper installation voids the ViewLux manufacturer warranty. A handyman who skips the thermal break continuity, uses the wrong foam, or anchors into inadequate substrate can create leaks, condensation, and frame failure that the manufacturer won’t cover. We’ve been called in to fix too many of those jobs. Our authorized-partner installation protects your investment and your coverage.

Miami Lakes building codes also require impact-rated glazing in certain wind zones and exposure categories. We pull permits when required, coordinate inspections, and ensure your installation certificate meets your insurance underwriter’s documentation needs.

Frequently Asked Questions - VLX 80 Fixed / Picture Window

What is the lead time for the VLX 80 Fixed / Picture Window?

Lead time typically runs 4 to 6 weeks from signed approval and deposit, depending on glass type and finish selection. Laminated impact glass and custom sizes can extend this slightly. Call (786) 755-8730 to check current ViewLux production schedules for your specific configuration.

Does the VLX 80 qualify for energy tax credits?

It can, depending on the glass package you select and whether the complete assembly meets the applicable NFRC U-factor and Solar Heat Gain Coefficient thresholds for federal or state programs. We provide certified NFRC ratings with every quote so you and your tax preparer can determine eligibility. Call (786) 755-8730 to discuss which glass options optimize both performance and potential credits.

What warranty comes with the Fixed / Picture Window?

ViewLux backs the frame with a 20-year limited warranty on aluminum components and a 10-year warranty on the insulated glass unit against seal failure. Our installation carries a separate 5-year workmanship guarantee covering leaks, air infiltration, and operational defects. Manufacturer warranty requires authorized installation, which is why we emphasize our partner status.

Can I customize the size?

Yes, within the maximum span of 120 inches wide. We fabricate to your rough opening dimensions in quarter-inch increments, and we can combine multiple units in mulled configurations for larger openings. Call (786) 755-8730 to schedule a free on-site measurement and discuss layout options for your specific wall.

How do I maintain aluminum frames in Miami Lakes?

Rinse frames quarterly with fresh water to remove salt and pollen accumulation, especially if you’re near the western lakes or open fields. Wash annually with mild soap and a soft brush. Avoid abrasive cleaners or pressure washers that can damage finishes. The powder coat and anodized finishes on VLX 80 frames are formulated for marine and subtropical exposure, so with basic care they’ll outlast painted wood or vinyl alternatives common in older Miami Lakes homes.

Get a Quote - VLX 80 Fixed / Picture Window in Miami Lakes

Whether you’re building new, replacing failed units, or designing a feature wall of glass, we’ll measure your opening, walk you through glass and finish options, and deliver a written line-item quote with no hidden costs. Every project starts with a free on-site consultation in Miami Lakes. Call (786) 755-8730 or reach out through our contact form to schedule yours.

Written by the team at Sightline Windows & Doors Miami Lakes, authorized ViewLux installation partner serving Miami Lakes, FL.
